Beam Graphic Dimensions

Overall Length and Sloped Length

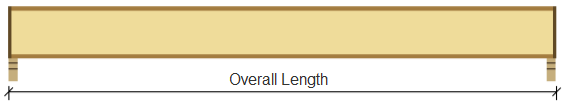

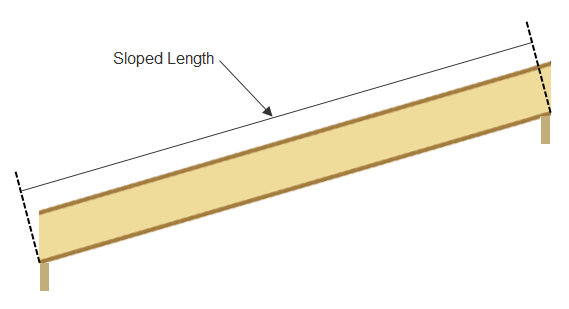

The Overall Length of the entire problem is always displayed above the beam graphic. If the member is sloping, the Sloped Length is displayed. This dimension may sometimes be longer than the member itself if there are flush elements (rim board or a hanger) on one or both sides of the member.





Member Length (Cut Length)

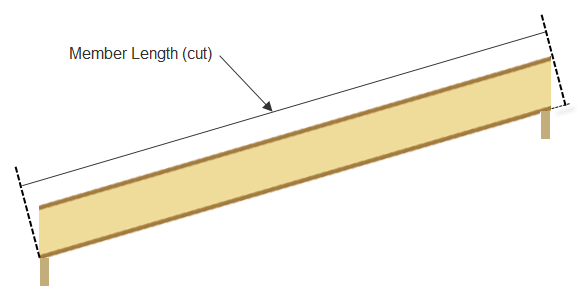

The Member Length, or Cut Length, of the member will be displayed on the Member Report.
